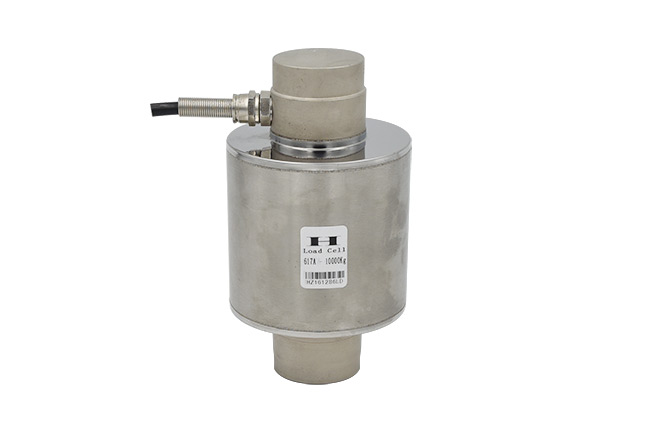

量程：10t,20t,30t,40t,50t,60t
適用于材料試驗機，壞境監測設施。
特征：
符合OIML認證指標
高精度
合金鋼
易于安裝，性能穩定
合金鋼/不銹鋼
| SPECIFICATIONS 技術參數 | |||
| Full Scale Output 靈敏度輸出 | 2.0±0.1%mV/V | Recommended Excitation 使用電壓 | 10V(15V Maximnm) |
| Zerc Balance 零點輸出 | ±1.0mV/V | Insulation Resistance 緣阻抗 | >2[50V DC]GΩ |
| Non-linearity 非線性 | <±0.3% | Nominal Temperature Range 工作溫度 | -10℃to40℃/14℉to104℉ |
| Repeatability 重復性 | <±0.3% | ||
| Hysteresis Error 滯后 | <±0.3% | Safe Overload 安全過載 | 150% of full scale |
| Creep in 30 min 30分鐘蠕變 | <±0.3% | Breaking Overload 極限過載 | 300% of full scale |
| Input Resistance 輸入電阻 | 775Ω±5 | IP Rating 防護等級 | IP67/IP68 |
| Outnput Resistance 輸出電阻 | 702Ω±2 | Cable Color Code 顏色碼 | Exc(輸入)+:Red(紅);Exc(輸入) -Black(黑);Sig(輸出)+Green(綠); Sig(輸出)-:Whit白 Shield Bare(屏蔽) |
| Element Materia 材質 | Alloy steel/Stainless steel 合金鋼/不銹鋼 | ||

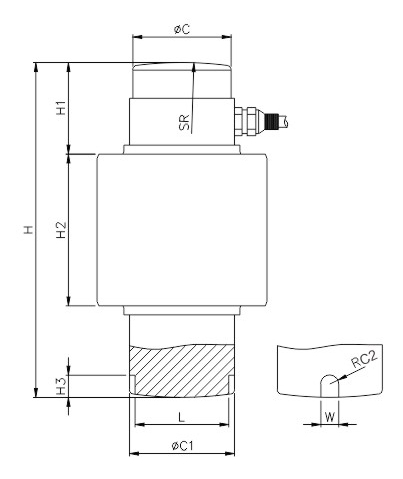

| DIMENSIONS 尺寸 | ||||||||||
RATE CAPACITY 量程 | C | C1 | C2 | SR | L | W | H | H1 | H2 | H3 |
| t/mm | ||||||||||
| 4.5-13.6 | 40 | 41.7 | 4 | 150 | 34.7 | 8 | 150 | 38 | 82 | 10 |
| 18 | 53 | 53 | 5 | 200 | 43 | 10 | 170 | 47 | 95 | 10 |
| klb/inches(conversion of above dimensions 由以上尺寸轉換) | ||||||||||
| 10-30 | 1.57 | 1.64 | 0.16 | 5.90 | 1.37 | 0.31 | 5.90 | 1.49 | 3.23 | 0.39 |
| 40 | 2.09 | 2.09 | 0.20 | 7.87 | 1.69 | 0.39 | 6.69 | 1.85 | 3.74 | 0.39 |
