特征：
符合OIML認證指標
IP67防護
防爆(Ex ib Ⅱ CT4)
| SPECIFICATIONS 技術參數 | |||
| Full Scale Output 靈敏度輸出 | 2.0±10%mV/V | Recommended Excitation 使用電壓 | 10V(15V Maximnm) |
| Zerc Balance 零點輸出 | ±0.02mV/V | Insulation Resistance 緣阻抗 | >2[50V DC]GΩ |
| Non-linearity 非線性 | <±0.017% | Nominal Temperature Range 工作溫度 | -10℃to40℃/14℉to104℉ |
| Repeatability 重復性 | <±0.017% | ||
| Hysteresis Error 滯后 | <±0.017% | Safe Overload 安全過載 | 150% of full scale |
| Creep in 30 min 30分鐘蠕變 | <±0.02% | Breaking Overload 極限過載 | 200% of full scale |
| Input Resistance 輸入電阻 | 350Ω±10 | IP Rating 防護等級 | IP67 |
| Outnput Resistance 輸出電阻 | 350Ω±3 | Cable Color Code 顏色碼 | Exc(輸入)+:Red(紅);Exc(輸入) -Black(黑);Sig(輸出)+Green(綠); Sig(輸出)-:Whit白 Shield Bare(屏蔽) |
| Element Materia 材質 | Alloy steel/Stainless steel 合金鋼/不銹鋼 | ||

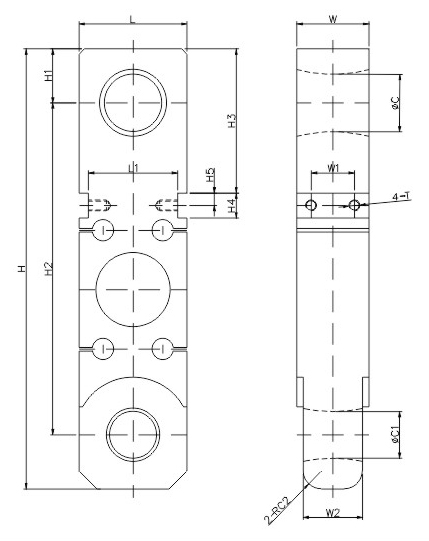

| DIMENSIONS 尺寸 | |||||||||||||||
RATE CAPACITY 量程 | C | C1 | C2 | L | L1 | W | W1 | W2 | H | H1 | H2 | H3 | H4 | H5 | T |
| kg/mm | |||||||||||||||
| 3 | 25 | 20 | 10 | 60 | 49.5 | 36 | 24 | 22 | 233 | 25 | 183 | 69 | 14 | 7 | M6深10 |
| 5 | 32 | 26 | 10 | 60 | 49.5 | 40 | 24 | 33 | 244.4 | 30 | 184.4 | 80 | 14 | 7 | M6深10 |
| lb/inches(conversion of above dimensions 由以上尺寸轉換) | |||||||||||||||
| 6614 | 0.98 | 0.79 | 0.39 | 2.36 | 1.95 | 1.42 | 0.94 | 0.87 | 9.17 | 0.98 | 7.20 | 2.72 | 0.55 | 0.28 | M6 DP 0.39 |
| 11023 | 1.26 | 1.02 | 0.39 | 2.36 | 1.95 | 1.57 | 0.94 | 1.3 | 9.62 | 1.18 | 7.26 | 3.15 | 0.55 | 0.28 | M6 DP 0.39 |
