特征：
常溫下，分度值可高達60,000
角差修正
單點式臺面
IP66防護
綜合誤差不超過0.006%
| SPECIFICATIONS 技術參數 | |||
| Full Scale Output 靈敏度輸出 | 1.5±10%mV/V | Recommended Excitation 使用電壓 | 10V(15V Maximnm) |
| Zerc Balance 零點輸出 | ±0.02mV/V | Reference Max.Platform Size | Capacity<1Kg:200*200mm |
| Non-linearity 非線性 | <±0.017% | 大秤臺尺寸 | Capacity<1Kg:230*230mm |
| Repeatability 重復性 | <±0.017% | Insulation Resistance 緣阻抗 | >2[50V DC]GΩ |
| Hysteresis Error 滯后 | <±0.017% | Nominal Temperature Range 工作溫度 | -10℃to40℃/14℉to104℉ |
| Creep in 30 min 30分鐘蠕變 | <±0.023% | Safe Overload 安全過載 | 150% of full scale |
| Input Resistance 輸入電阻 | 405Ω±15 | Breaking Overload 極限過載 | 300% of full scale |
| Outnput Resistance 輸出電阻 | 350Ω±5 | IP Rating 防護等級 | IP66 |
| Element Materia 材質 | Aluminum 鋁合金 | Cable Color Code 顏色碼 | Exc(輸入)+:Red(紅);Exc(輸入) -Black(黑);Sig(輸出)+Green(綠); Sig(輸出)-:Whit白 Shield Bare(屏蔽) |

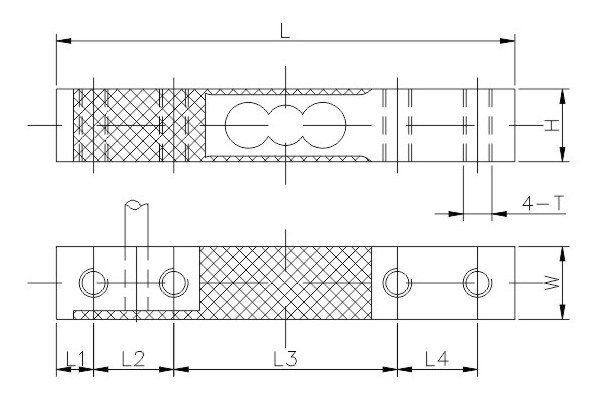

| DIMENSIONS 尺寸 | ||||||||
RATE CAPACITY 量程 | L | L1 | L2 | L3 | L4 | W | H | T |
kg/mm 0.3-3 | 80 | 6.5 | 14 | 39 | 14 | 12.7 | 12.7 | M5 |
| lb/inches(conversion of above dimensions 由以上尺寸轉換) | ||||||||
| 0.66-6.6 | 3.15 | 0.26 | 0.55 | 1.54 | 0.55 | 0.5 | 0.59 | M5 |
